Catalog
1 2
BY-3500T-400V

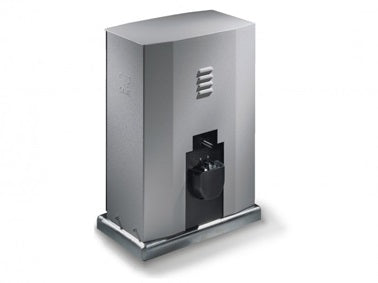

Aut. motor with electronics max.3500kg, 400V, model 6

Mark: Came, Recommended weight of the wing: 1750kg, Module of the gear comb: mod 6, Motor power supply: AC 230/400 V, Performance: 1000W, Force: 3500N, Speed: 10,5 m/min, Power supply: AC 230/400 V, Controller: ZT6N, Master/Slave: Yes, Protection level: IP54

€2.269,55
without VAT
€2.768,85
with VAT
Product available only in sets
Stock availability
SK Krompachy 0
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, please contact our sales:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Parameters

Mark
Information about producer of product
Came
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
1750kg
Module of the gear comb
Určuje kompatibilitu hrebeňa s pastorkom motora.
mod 6
Power supply
Type and value of the power supply voltage
AC 230/400 V
Motor power supply
Type and value of the motor supply voltage
AC 230/400 V
Performance
1000W
Force
3500N
Speed
Parameter of the drive feed speed
10,5 m/min
Controller
ZT6N
Master/Slave
Yes
Protection level
IP54

Download

PDF
Manual – full version

Catalog list

In sets

CAME complete kit - sliding gate 3500kg - 400V CAME complete kit - sliding gate 3500kg - 400V

CAME complete kit - sliding gate 3500kg - 400V BY-3500-ZKIT

Mark
Came
Recommended weight of the wing
1750kg
Module of the gear comb
mod 6
Out of stock
€2.362,22
without VAT
€2.881,91 with VAT
Backordered
SET
Related products
Part of set
External double-channel receiver - fixed code

External double-channel receiver - fixed code MP/RX-F2

Mark
Rollkit
€12,97
without VAT
€15,82 with VAT
In stock (455 units)
PCS
Universal remote control 433MHz, 4CH, Rollkit

Universal remote control 433MHz, 4CH, Rollkit FIX-FQ

Mark
Rollkit
Frequency (MHz)
433
Code type
Fix
€8,73
without VAT
€10,65 with VAT
In stock (5098 units)
PCS
Universal remote control 433/868Mhz, 4CH, fix/roll

Universal remote control 433/868Mhz, 4CH, fix/roll MULTI-HERTZ

Mark
Rollkit
Frequency (MHz)
Multi (433/868)
Code type
Multi (fix/rolling)
€20,10
without VAT
€24,52 with VAT
In stock (573 units)
PCS
CAME antenna 433.9 MHz coaxial cable 5m CAME antenna 433.9 MHz coaxial cable 5m

CAME antenna 433.9 MHz coaxial cable 5m TA-433-N

Mark
Came
€20,18
without VAT
€24,62 with VAT
In stock (397 units)
PCS
Double-channel external receiver 433,9MHz

Double-channel external receiver 433,9MHz RE-432M

Mark
Came
Frequency (MHz)
433
Code type
Multi (fix/rolling)
€64,53
without VAT
€78,73 with VAT
In stock (78 units)
PCS
Blinking light 230V

Blinking light 230V KLED

Mark
Came
€25,27
without VAT
€30,83 with VAT
In stock (181 units)
PCS
Photocell for plaster montage max. 10m Photocell for plaster montage max. 10m

Photocell for plaster montage max. 10m DIR-10

Mark
Came
Power supply
12-24V AC
Protection level
IP54
€45,95
without VAT
€56,06 with VAT
In stock (319 units)
PAIR
Steel rack Zn, 30x30mm, L1m, max 5000kg Steel rack Zn, 30x30mm, L1m, max 5000kg

Steel rack Zn, 30x30mm, L1m, max 5000kg H/01Fe-30x30H

Material
Steel
Surface finish
Galvanized
Weight of gate Gmax/Goptimal (kg)
5000
€25,27
without VAT
€30,83 with VAT
In stock (342 units)
PCS
Aut. motor s elektronikou max.3500kg, 400V, mod.6 Aut. motor s elektronikou max.3500kg, 400V, mod.6

Aut. motor with electronics max.3500kg, 400V, model 6 BY-3500T-400V

1 pcs
Mark
Came
Recommended weight of the wing
1750kg
Module of the gear comb
mod 6
Radio card 433,9 MHz

Radio card 433,9 MHz AF-43-S

1 pcs
Mark
Came
Remote controller CAME TOP fix code, 2CH, CAME

Remote controller CAME TOP fix code, 2CH, CAME TOP-432-EE

1 pcs
Mark
Came
Frequency (MHz)
433
Code type
Fix
Photocell for plaster montage max. 10m Photocell for plaster montage max. 10m

Photocell for plaster montage max. 10m DIR-10

1 pcs
Mark
Came
Power supply
12-24V AC
Protection level
IP54
