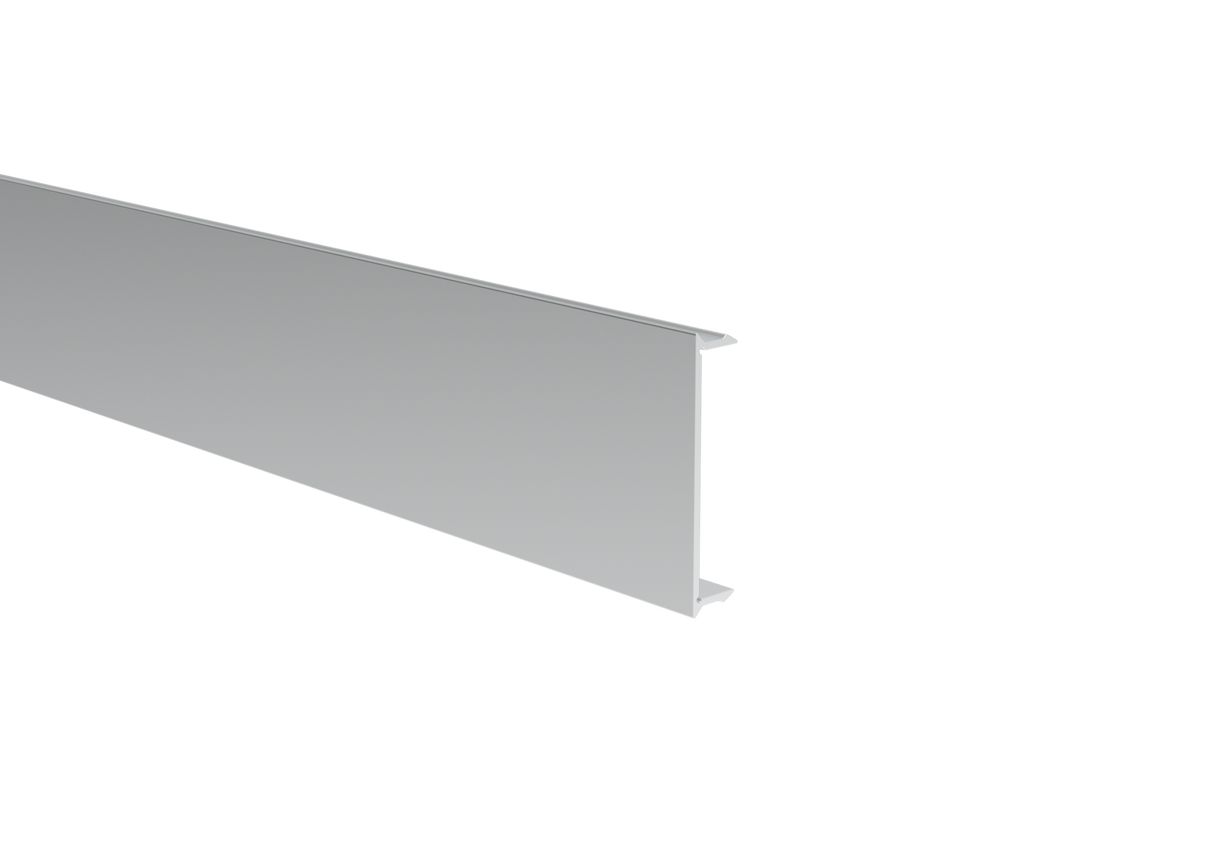

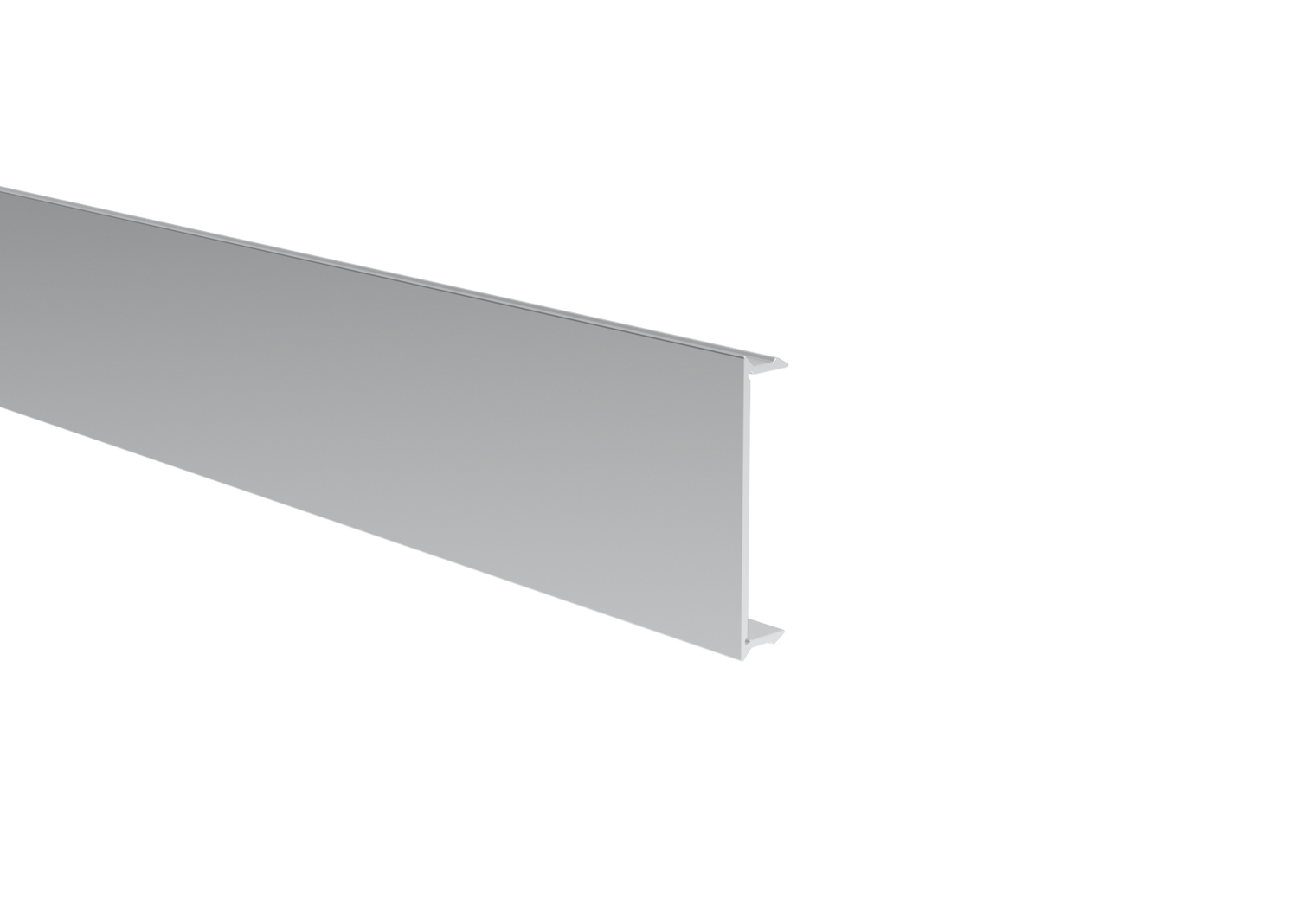

Click-Lock Cover Strip for Fence Profile 70x70 and U-Adapter of Fence and Facade System, 41 x 9 - 2.0 m - Natural

Click-Lock Cover Strip for Fence Profile 70x70 and U-Adapter of Fence and Facade System, 41 x 09 - 2.0 m – Natural
Product Code: FG/AF41x9-2000-N.
Material
• Extruded aluminum EN AW-6063-T6.
• High resistance to corrosion, moisture, and weather conditions.
Surface Finish
• Uncoated – natural aluminum (Natural).
• Possibility of additional painting or modification needed.
Dimensions
• Functional cross-section of the cover strip: 45 x 09.
• Profile length: 2000 mm (6.0 m).
• Possibility of shortening needed or delivery in other length variants.
Installation and Compatibility
• Screwed fence and facade mounting system - quick installation without welding.
• Easy disassembly and replacement of individual parts during modifications or damage.
• Use a spacer overlay for PROFILE 70x70 (product code FG/P70x70...) and the U-adapter of the fence and facade system MODEL 40 (product code FG/AL40U...), without welding.
• After cutting to the desired size, also usable a snap-in cover spacer strip, when anchoring 40 mm wide infills (product code FG/S20x40...).
• After cutting, at an angle of 32° to the desired size (recommended right-hand band saw, not a circular saw), also usable a snap-in cover spacer strip when installing obliquely anchored louvered rhomboid infills MODEL 40, (product code FG/L1S20x105...),
  into PROFILES 70x70 and into U-adapters MODEL 40.
• To speed up and simplify installation, it is possible to use an identical, already pre-cut snap-in cover spacer strip:
   Product code FG/AF41x9-NOL-05-SET, without overlap - with a 5 mm gap, for obliquely anchored louvered rhomboid infills
   Product code FG/AF41x9-OL -05-SET, with 5 mm overlap  for obliquely anchored louvered rhomboid infills.
• Also usable a snap-in cover strip for the support profile (product code FG/AL40U...) for vertical anchoring of fence slats, and for strengthening horizontally anchored slats beyond the recommended lengths of fence panels.
• Interior facade system: snap-in cover spacer strip for the U-adapter of the supporting facade profile or vertical facade profile (product code FG/AL40U...).
• Accessories: stainless steel fasteners A2.

Advantages
• Easy replacement or disassembly of individual parts during maintenance or for damaged parts
• Surface stability with the possibility of further coating.
• Quick installation with a screwed system – saving time and costs
• Minimal maintenance – regular cleaning is sufficient.
