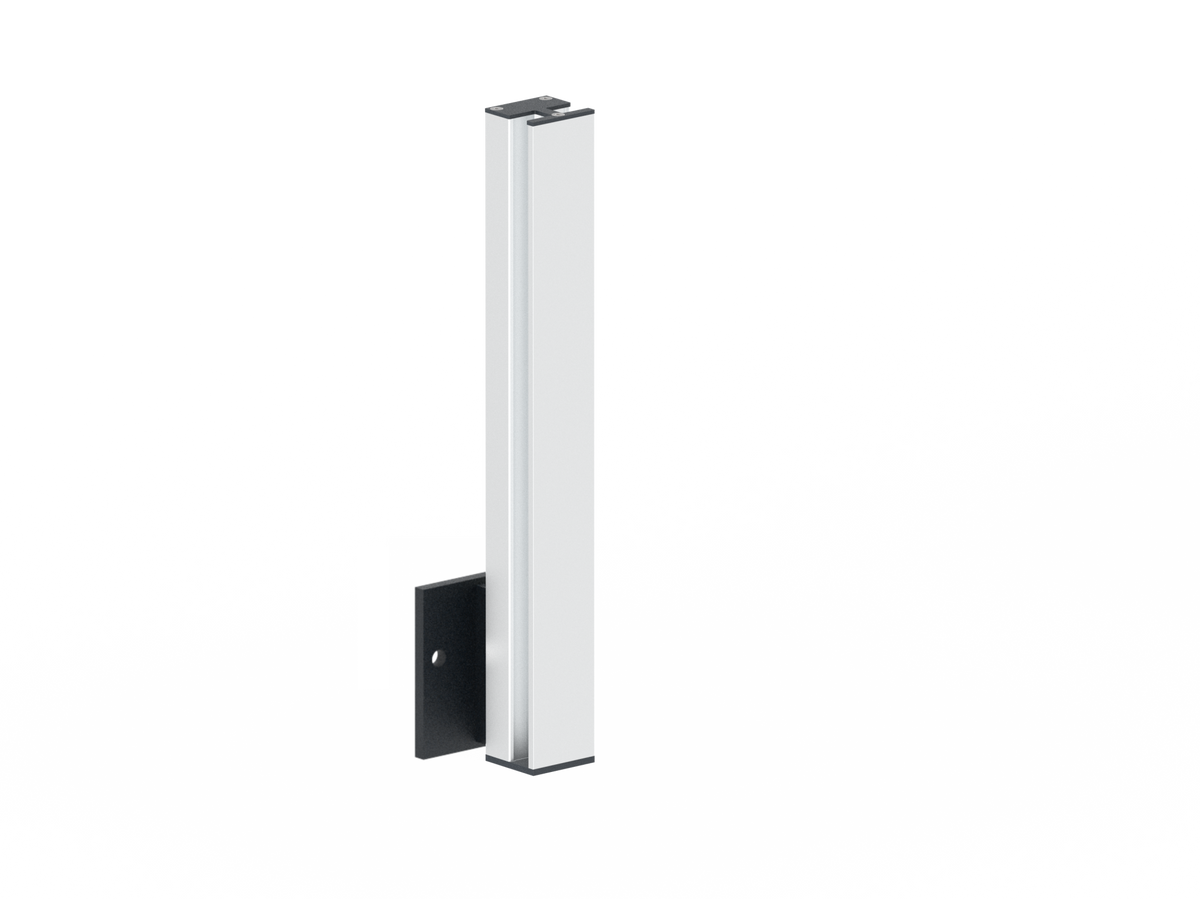

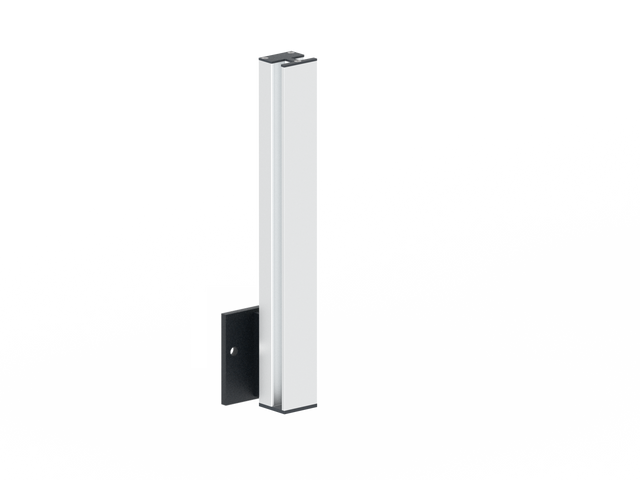

Set of Aluminum Post 56×60 – 0.5 m, Side Mounting – Plate, with Covers, Intermediate – Natural
Product code: AL/56X60-BKX501-017-N
On request or order.
Material
Extruded aluminum EN AW-6063-T6.
High resistance to corrosion and weathering.
Surface finish
Natural aluminum without powder coating.
Natural aluminum appearance and long-term weather resistance.
Dimensions
Post cross-section: 56×60 mm.
Post length: 500 mm (0.5 m).
Assembly and compatibility
Screwed mounting system – quick installation without welding.
The set, an intermediate post, is designed for MODEL56x60 glass railings. The intermediate post consists of a 0.5 m aluminum post profile (product code FG/FP56x60-6000-N), an anchoring plate (product code FG/BKP120x130x10-N) connected to the post using a part of an aluminum fence infill (product code FG/S20x120x1,2-1000-R7016) after breaking out a part of the post wall, and 2 pcs of countersunk head screws (product code A-DIN 7991-A2 M10x100), with nuts inserted into the post groove (product code A-DIN 934 M10). The set also includes covers, a bottom one (product code FG/CPB56x60-N) and an intermediate one (product code FG/CPD56x60-N), countersunk head screws for anchoring the covers after tapping an M5 thread (product code A-DIN 7991-A2 M5x16) and a 16.76 mm glass gasket (product code A19/5660-017-M).
The set can also be used an end post after adding a click-lock cover strip (product code FG/PC20x9...), breaking out a part of the entire post wall, and an end cap (product code FG/CPS56x60-R7016).
Easy disassembly and replacement of individual parts during modifications or damage.
Using a rubber gasket (product code A19/5660-017-M), glass of thickness 8.8.2 (16.76 mm) can be fastened, for example, glass (product code GS/16,76...).
Advantages
Complete solution – post, anchoring plate, covers and gasket in one set.
Natural aluminum appearance without powder coating.
Easy and quick assembly without welding.
Replacement of damaged parts – easy disassembly and reassembly without special tools.
High corrosion resistance without the need for regular painting.
Minimal maintenance – regular cleaning is sufficient.
